Turmeric Grinding Machine

Next > >

Send Inquiry

Product Code : FIM

Brand Name : Lithotech Engineers LLP

Product Description

Product Details:

Minimum Order Quantity	1 Unit
Capacity	100 kg
Usage/Application	Masala Grinding
Color	Green
Material	Stainless Steel
Type	Semi-Automatic
Voltage	415 V
Phase	Three phase
Automation Grade	Semi-Automatic

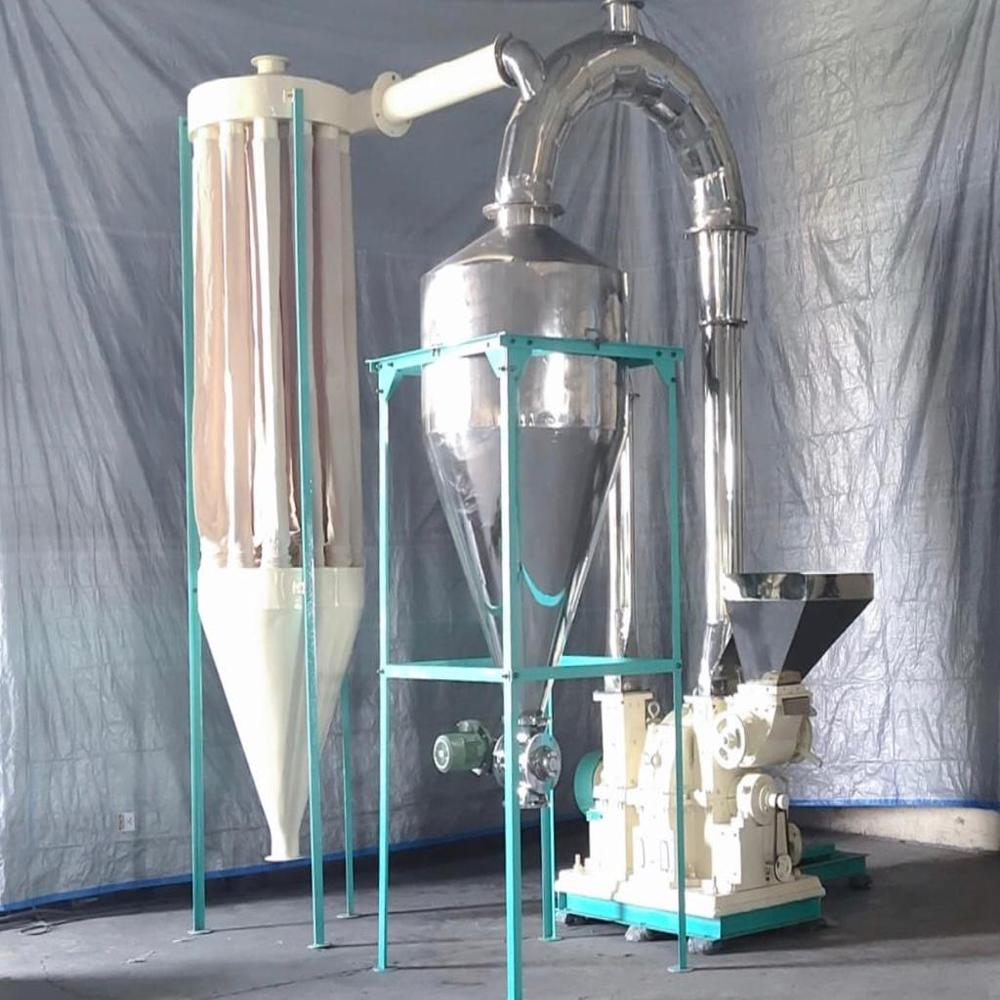

Our Turmeric Grinding System consisting of thefollowing equipment:-

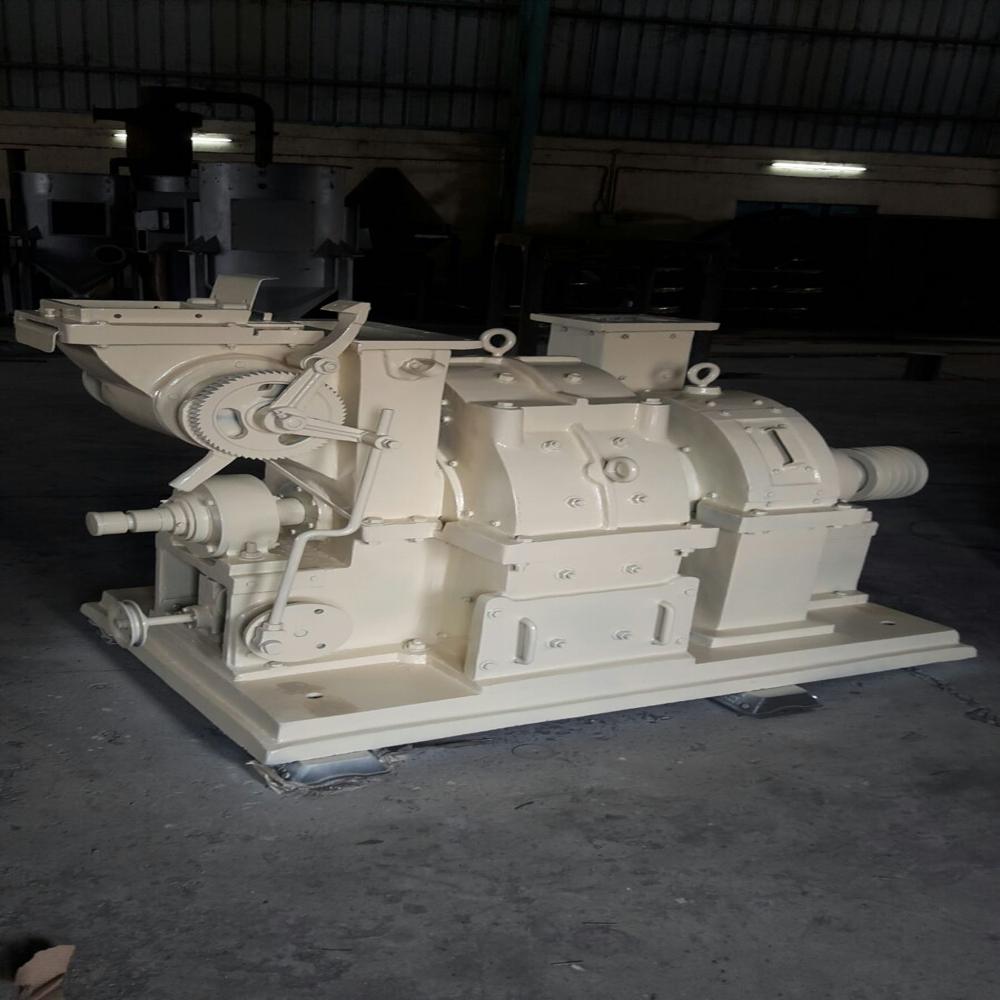

1) AIR SWEPT MILL ASM-10: This machine with a 10 H.P. motor would fine grind the turmeric in to fine powder ofapproximately 50-90 mesh. The capacity achieved would be approx 50-60 kgs/hr.
2) PNEUMATIC CONVEYING SYSTEM MODEL PCS-400 : This System will comprise of a cyclone separator and theducting which will separate the air and the material. The material will be conveyed from the Air Swept Mill in to theCollection drum through the Rotary Air Lock Valve.
3) ROTARY AIR-LOCK VALVE MODEL RALV-200 : This equipment will discharge the pulverized powder from thecyclone separator into the Air Swept Mill but will prevent the air from coming out along with the material. This valvewill prevent the dusting at the collection end.
4) OPEN TYPE DUST COLLECTOR : The function of dust collection unit is to collect fine dust & release clean air in tothe atmosphere.
Our system has product contact parts in STAINLESSSTEEL304 and non-contact parts in MILD STEEL.
